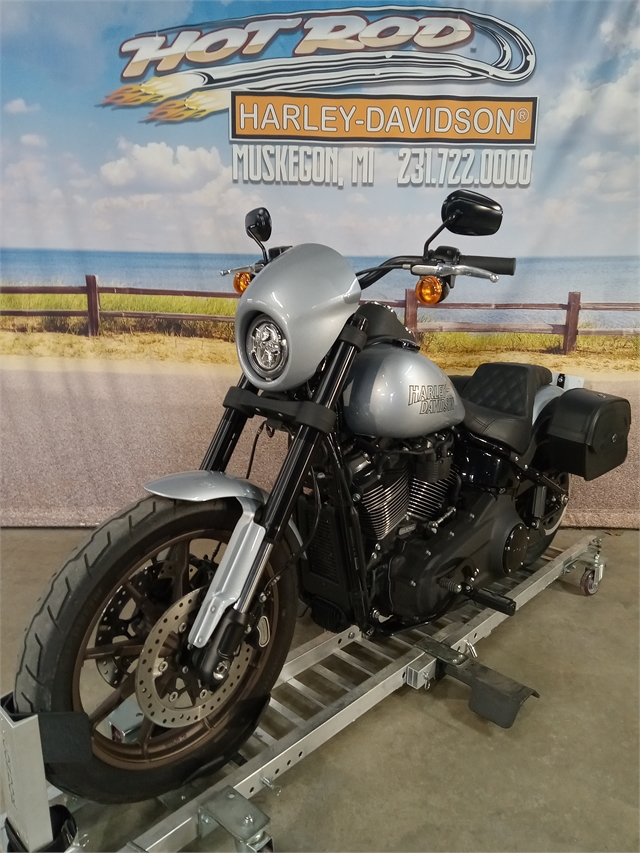

2020 Harley-Davidson Low Rider S

Hot Deal

Stock #5480
Your Price: $16,999
Check Availability Hi, my name is and I'm interested in this 2020 Harley-Davidson Softail . I'm in the area and you can reach me at or by phone at .




LOW RIDER® S



Some meditate lying down, others lean into it

2020 LOW RIDER® S

Low Rider® S is an all-new blacked-out performance-cruiser with a style that’s as aggressive as its ride.

KEY FEATURES

Milwaukee-Eight 114 Engine
Loads of torque for blasting off from stoplights, hitting entrance ramps, and rolling on the passing power. Pure sound with a soul-satisfying rumble.

Reduced Rake
The Low Rider® S model frame rake is reduced to 28 degrees from the 30 degree rake of the standard Low Rider® model, resulting in more responsive handling.

Inverted Front Fork
Inverted design stiffens the front end for improved response to steering input, and the single-cartridge internal technology responds quickly to inputs and keeps the front wheel planted for improved braking and handling performance.

Softail® Frame
The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

Mono-shock rear suspension
Easily adjustable mono-shock rear suspension allows for dynamic cornering capability, quicker acceleration, and braking while preserving the hardtail look.

Raw Dark Look
Blacked-out finishes, moto-style bars with 4-inch risers, and mini speed screen let everyone know that this machine wasn’t built for those who want to take the conventional route.

Raised Controls
The defining element of the tall-bike style. The 1-inch diameter motocross-style handlebar is mounted on 4-inch risers to put you in an aggressive riding position.

Cast-Aluminum Wheels
Radiate Cast-Aluminum Wheels are finished in a matte dark bronze to complete its raw dark look.

Dual Front Disc Brakes
Stronger braking performance with less lever effort than the single front disc brake on the standard Low Rider® model, and standard ABS (anti-lock braking system) for confident braking performance when conditions are less than ideal.


  • Status:
    Pre-Owned
  • Vehicle:
    2020 Harley-Davidson Low Rider S
  • VIN:
    1HD1YWK1XLB027008
  • Model Number:
    FXLRS
  • Mileage:
    15,597 miles
  • Color:
    Barracuda Silver
  • Stock Number:
    5480
  • Title:
    Clear
  • Location:
    Hot Rod Harley-Davidson
  • Warranty:
    As Is

ENGINE

  • Bore (in):
    4.016 in.
  • Compression Ratio:
    10.5
  • Displacement (cc):
    114 cu in (1,868 cc)
  • Engine Stroke:
    4.5 in.
  • Engine Type:
    Milwaukee-Eight® 114
  • Torque (Ft Lbs):
    119 ft-lb (161 Nm)
  • Torque RPM:
    3000

OTHER SPECS

  • AM:
    N/A
  • Bluetooth:
    N/A
  • Brakes, Caliper Type:
    4-piston fixed front and 2-piston floating rear
  • CO2 Emissions Testing Method:
    N/A
  • CO2 Emissions:
    N/A
  • Engine Torque (RPM):
    3000
  • Engine Torque Testing Method :
    J1349
  • Engine Torque:
    119 ft-lb (161 Nm)
  • Exhaust :
    2-into-2 offset shotgun; catalyst in muffler
  • FM:
    N/A
  • Fuel Economy Testing Method:
    Estimated City/Hwy
  • Fuel Economy:
    47 mpg (5 l/100 km)
  • Fuel system:
    Electronic Sequential Port Fuel Injection (ESPFI)
  • Gauges :
    4-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication; 4-inch analog tachometer
  • Hands-free Mobile Phone - via Bluetooth:
    N/A
  • infotainment size:
    N/A
  • Infotainment System:
    N/A
  • Infotainment Type:
    N/A
  • Lean Angle, Left (Deg.):
    33.1
  • Lean Angle, Right (Deg.):
    33.1
  • Lights (as per country regulation), indicator lamps:
    High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, cruise, ABS, security, low battery voltage, low fuel
  • Luggage Capacity - Volume :
    N/A
  • LW:
    N/A
  • MW:
    N/A
  • Oil Capacity:
    5 qt. (4.7 l)
  • Rake:
    28
  • Rider/Passenger Intercom:
    N/A
  • SD Card, Flash Drive and MP3 - via USB Connection:
    N/A
  • Seat Height, Laden:
    26.5 in.
  • Seat Height, Unladen:
    27.2 in.
  • SiriusXM Presets:
    N/A
  • Speaker Size:
    N/A
  • Speakers:
    N/A
  • Tires - Front:
    110/90B19,62H,BW
  • Tires - Rear:
    180/70B16,77H,BW
  • Trail:
    5.7 in.
  • Trail:
    5.7 in.
  • USB:
    N/A
  • Vehicle Information Screen (Air temperature, oil pressure and EITMS):
    N/A
  • Watts Per Channel:
    N/A
  • Weight, as shipped :
    650 lb. (295 kg)
  • Weight, in running order:
    679 lb. (308 kg)
  • Wheels, Front Type:
    Dark bronze, Radiate cast aluminum wheel
  • Wheels, Optional Style:
    N/A
  • Wheels, Rear Type:
    Dark bronze, Radiate cast aluminum wheel

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    5 gal. (18.9 l)
  • Ground Clearance (in):
    4.7 in.
  • Length (in):
    92.7 in.
  • Wheelbase (in):
    63.6 in.

TRANSMISSION

  • Gear Ratio (1):
    9.311
  • Gear Ratio (2):
    6.454
  • Gear Ratio (3):
    4.793
  • Gear Ratio (4):
    3.882
  • Gear Ratio (5):
    3.307
  • Gear Ratio (6):
    2.79
  • Primary Drive (Rear Wheel):
    Chain, 34/46 ratio
